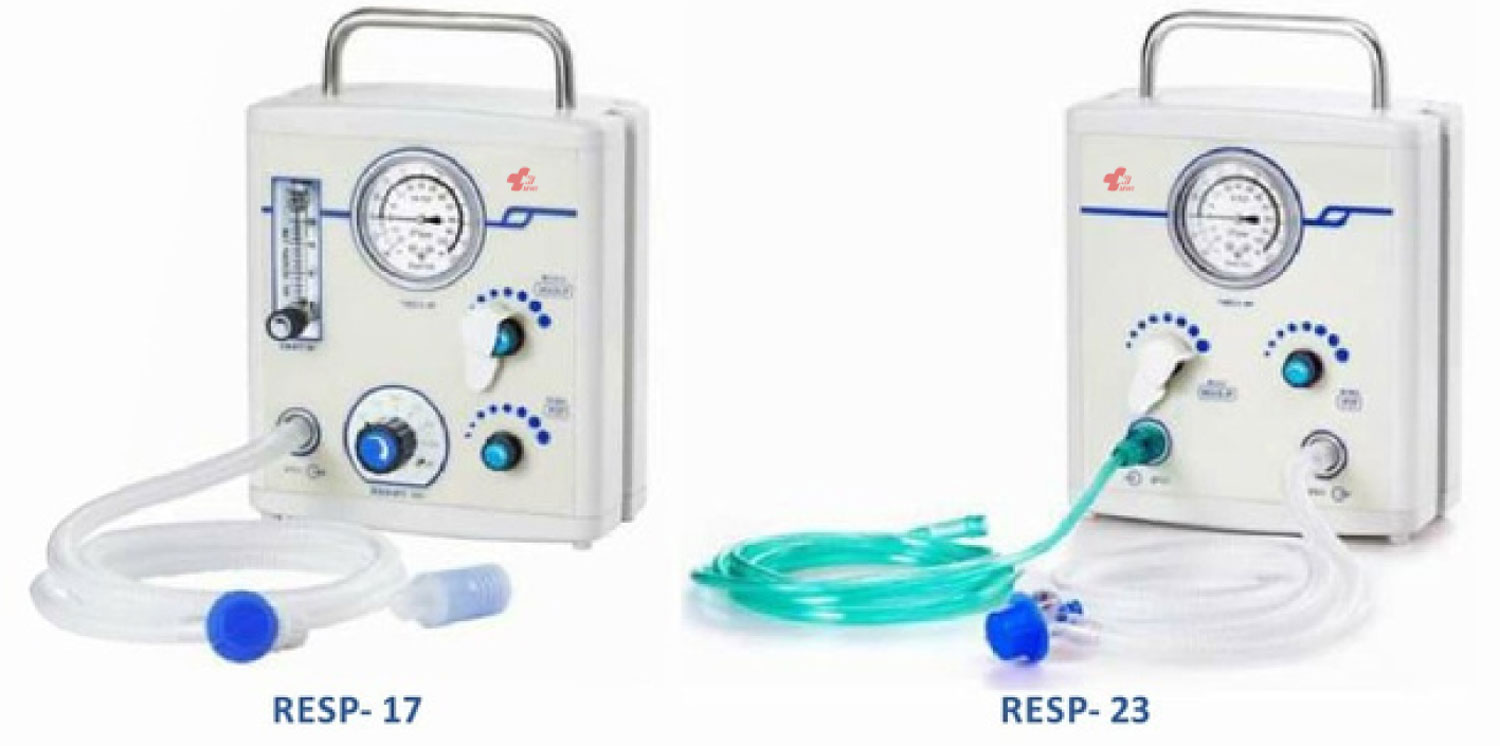

Infant T-Piece Resuscitator

Infant T-Piece Resuscitator


  • It is mainly used on delivery room, baby wards, NICU that the baby’s maximum weight up to 10Kg.
  • Inside an alarm system of differential pressure. When alarming, the safety valve starts automatically and produces the mixture gas continuously to ensure the safety of patients.
  • Adjust the Oxygen concentration from 21% to 100% optionally.
  • The range of flow adjustment is 5LPM~15LPM.
  • The Max-P and PIP are safe, controlled and accurate.
  • The PEEP is constant and accurate.
  • Simple operation and flexible application.
  • The output pressure would not be influenced by the operator experience, training, attention and fatigue.

Technical Parameter

  • Pressure gauge :- 2˜10kPa (-20˜100cmH20).
  • Max-P : @0˜15LPM 6kPa (60cmH20).
  • PIP : @5˜15LPM 0.2˜5.7kPa (2˜57cmH20).
  • PEEP : @5˜15LPM 0.03˜2.3kPa (0.3˜23cmH20).
  • RESP-17 : come with inbuilt Air / Oxygen blender.
