Fetal Monitor BT-350

Technical Specification

ModelBT-350 LEDBT-350 LCD
FHR Range (BPM)30 ~ 240 / 50 ~ 21030 ~ 240 / 50 ~ 210
UC ProbeExternal typeExternal type
UC Range0 – 990- 99
Display TypeLarge LED7” Color LCD
Trend Data Save 450 Hours
Alarm Sound Level2 Levels2 Levels
Alarm SoundTachycardia, BradycardiaTachycardia, Bradycardia
Information SoundProbe Disconnection, Printer door open, No Paper, Low BatteryProbe Disconnection, Printer door open, No Paper, Low Battery
Printer Speed1,2,3,cm/minute, 10cm/min. (Trend mode only)1,2,3,cm/minute, 10cm/min. (Trend mode only)
Thermal Paper (Z-fold)150mm (W) x 13.5m (L)150mm (W) x 13.5m (L)
Auto Print10, 20, 30, 40, 50, 60 minute10, 20, 30, 40, 50, 60 minute

Fetal Monitor (BT-350)


Advanced Fetal Monitor dedicated to Fetal health monitoring.

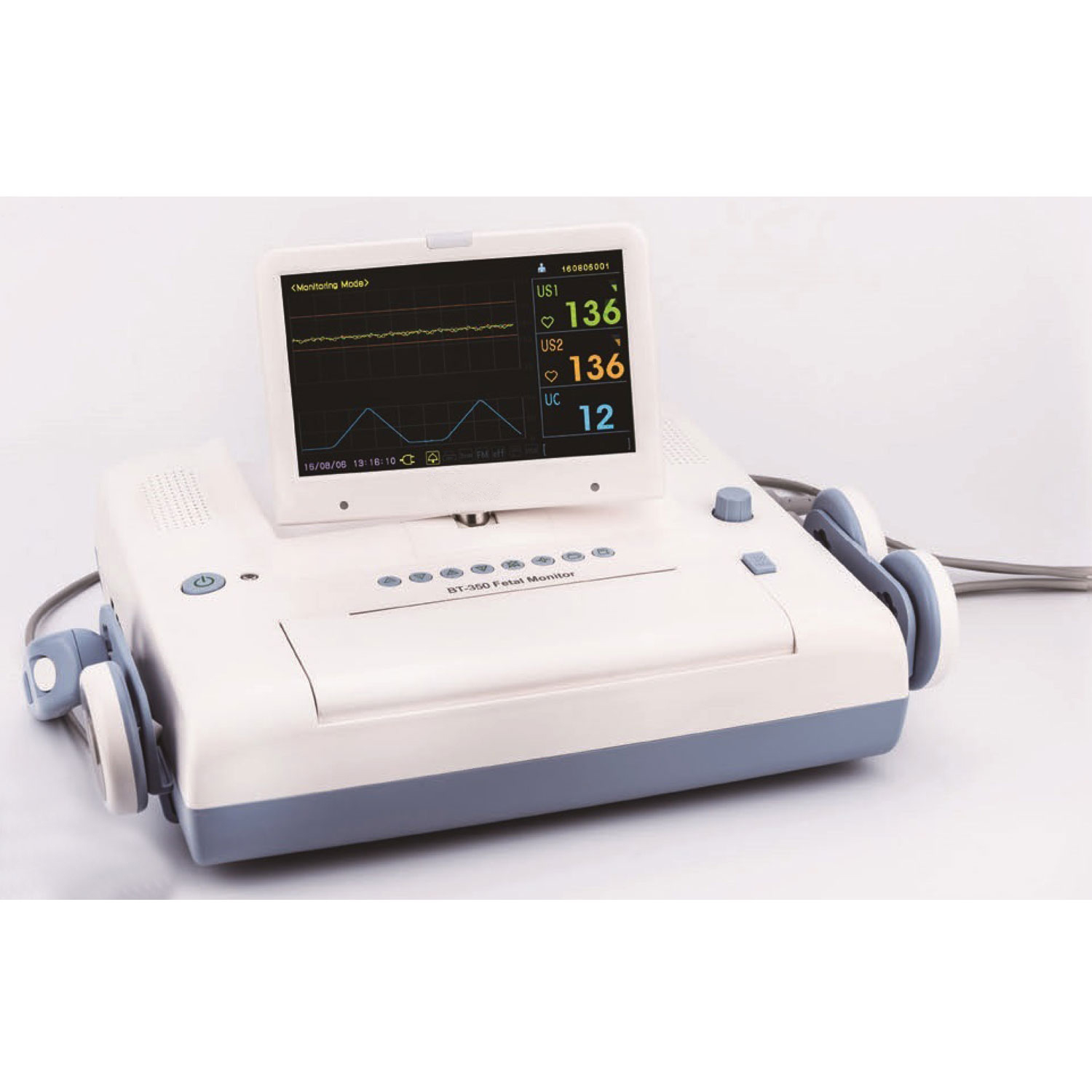

BT-350 LCD

  • BT-350 LCD : Display trace and numbers. Stored data can be reviewed afterward.
  • CTG Analysis : Calculates important data such as baseline, Acceleration, Deceleration, Fetal movement.
  • Cross Channel Verification : Prevent the FHR miscalculated by twin fetus by alarm.
  • Multi Language Support : 13 languages including English, Chinese, Spanish, German, Russia, Portuguese and more languages are available.
  • Built-in Quick Guide : Quick guide in the menu screen helps the user get to understand how to use and maintain the monitor properly.

BT-350 LED

  • BT-350 LED : Display numbers only. Large and bright LED is visible from a distance.
  • Various Paper Selection : BT-350 can use two most usual papers in the market (30-240bpm / 50-210bpm).
  • USB Data Save : FHR and UC trend data can be exported to USB memory stick and it can be managed by BCM-350 Central Monitoring Software.
  • Central Monitoring Software : Works on BCM-350 software along with other Fetal monitors by wire or wireless.


  • Connection :
  • Maximum connection : 16 monitors.
  • Wire connection : RS-232C, Lan.
  • Wireless connection : Bluetooth (optional)
  • Remote Control : BCM-350 is not only monitoring Fetal Monitors at central station but it can control monitors remote for basic function.
  • Database : BCM-350 is store data from the BT-300/350 by network connection and by USB memory. Stored data in internal memory of BT-350 can be exported to USB memory and t can be managed by BCM-350.
  • Multi Language Support : BCM-350 is multi-lingual software and friendly to many non-English speaking users.
  • Various Bed Display mode : Various style of display can satisfy every users with their own preference.

Standard Option

ModelBT-350 LEDBT-350 LCD
PC InterfaceRS 232C / EthernetRS 232C / Ethernet
PowerAC 100-240V (50/60Hz) DC 18V/2.5AAC 100-240V (50/60Hz) DC 18V/2.5A
Weight (Kg)28 kg.28 kg.
Dimensions (HxWxD) – mm240 x 405 x 360240 x 405 x 360
Battery Life Hour5 hour5 hour
Warranty (Main unit)2 Years2 Years
