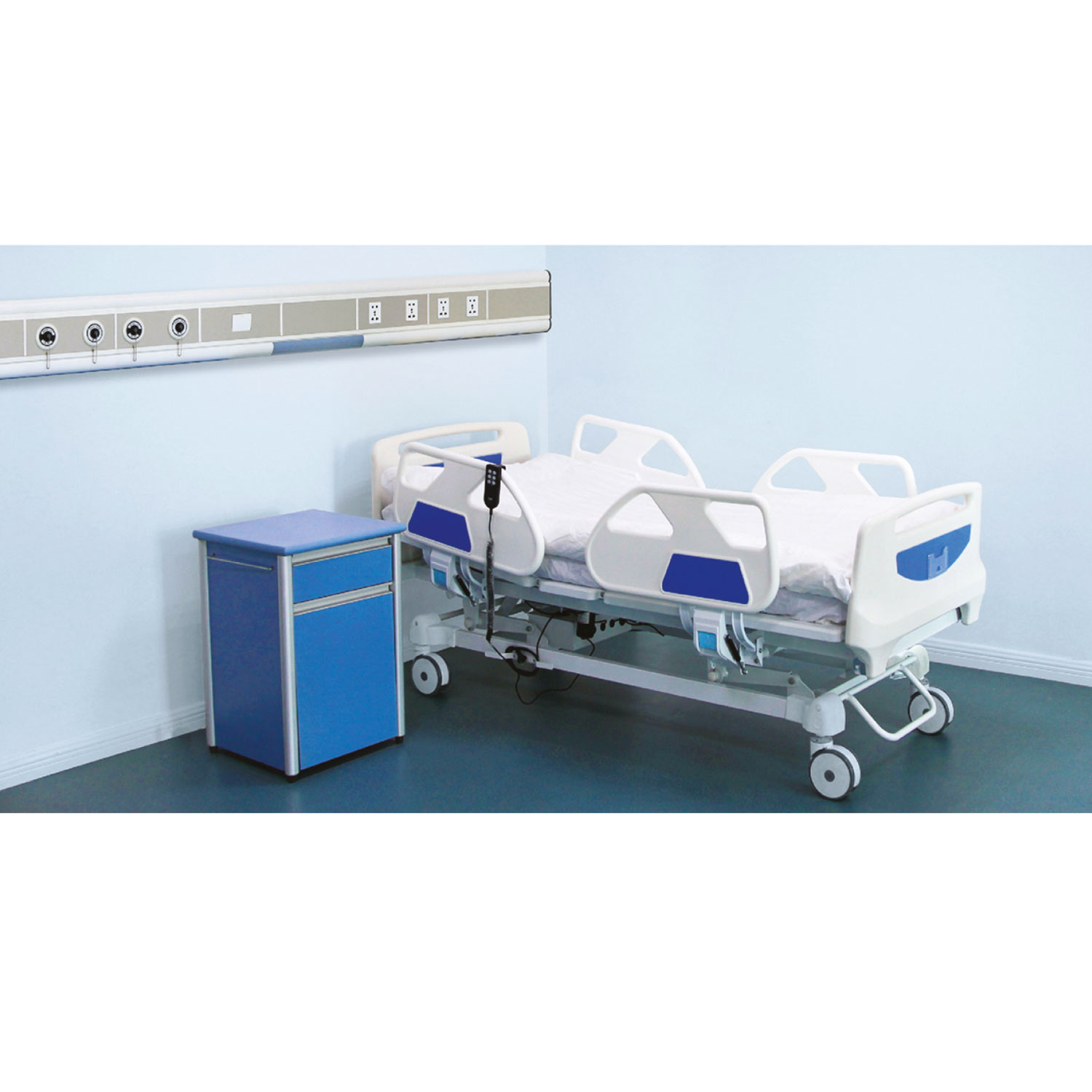

Electric ICU Bed EHB-02

TECHNICAL DETAIL
Overall Length2200 mm
Overall Width1060 mm
Height Range500-800 mm
Trendelenburg0°-12° (±5º)
Reverse Trendelenburg0°-12° (±5º)
Backrest Angle (Max.)75°
Legrest Angle (Max.)40°

Electric ICU Bed EHB-02

Description

  • Advance Linear Actuator system 04 pcs Motor, 01 Pc Control Box, 01 Pc Handset
  • Four pieces individual safety side rails, ABS Moulded.
  • ABS Moulded Head and Foot panel with locking and corner buffer.
  • Frame Work made of Rectangular M.S. Tube.
  • 4 Section top made up of perforated CRCA MS Sheet.
  • Bed Mounted on 125mm Dia Castor with central Braking system.
  • S.S. Telescopic IV Rod with 4 Locations
  • Finish: Pretreated & Epoxy Powder Coated

Position Obtained By Hand Remote

  • Hi-Low
  • Backrest elevation
  • Kneerest elevation
  • Trendelenburg / Reverse trendelenburg

Optional

  • 4 section mattress
  • X-Ray Translucent Backrest
  • Manual CPR for Backrest
