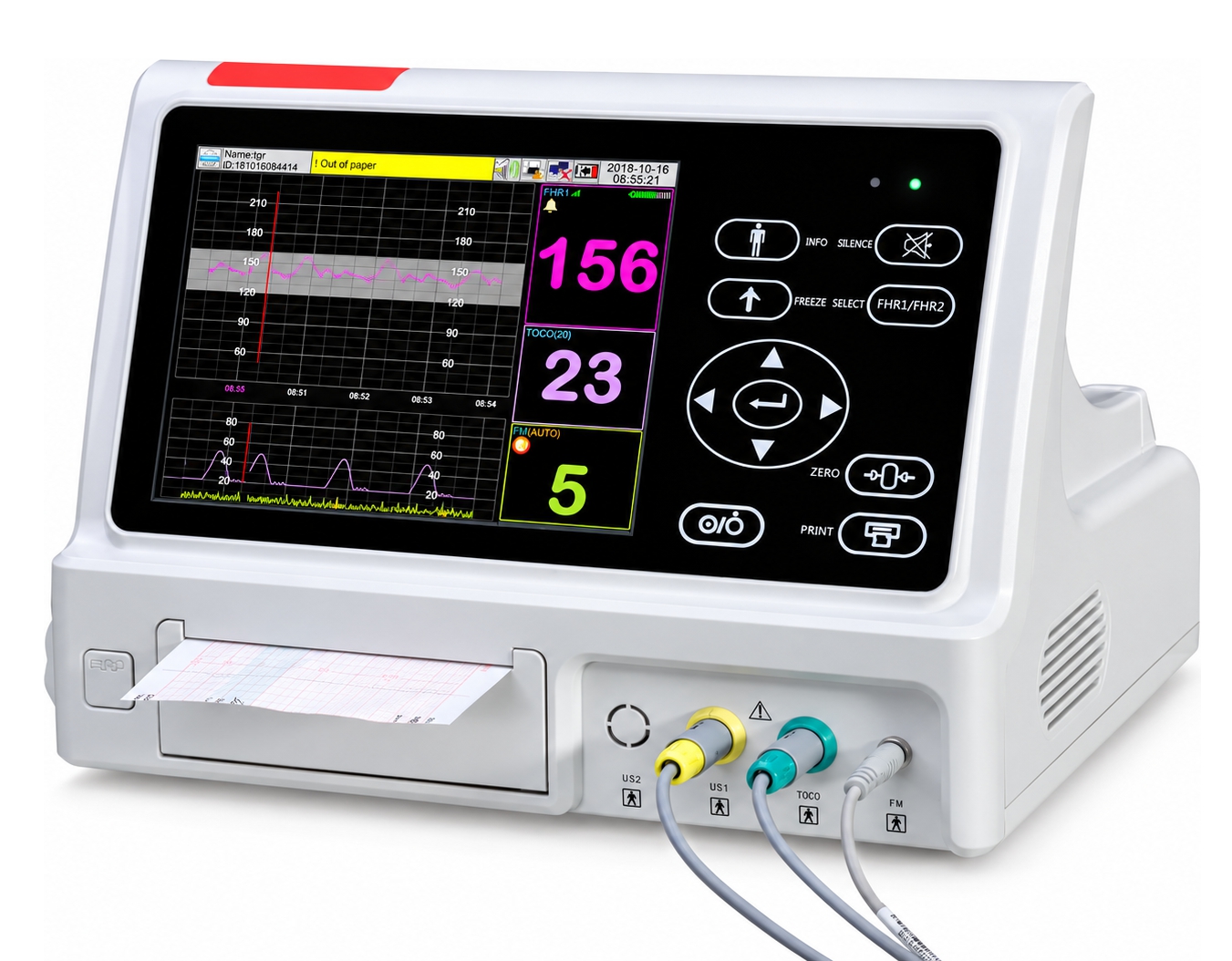

Fetal Monitor
Description
- 12.1 colour TFT high brightness screen.
- Equipped with reliable, high sensitivity, 12- element pulse doppler transducer.
- Rotatable screen, can be viewed from different direction.
- Built in high speed thermal printer, Printing width can be set to 112mm, 150mm or 210mm.
- 5 different styles of operation display, can be selective.
Optional function :
- Twins monitoring function, automatic fetal movements detection, AFM waveform displayable.
- 48 hours monitoring data playback.
- Rechargeable Li-Ion Battery.
- Built-in network capability, support wireless network.
Other
Model
CTG Machine / Fetal Monitor (MCF-21A)
Description
- 8″ color Touch TFT LED capacitive screen (upgradable to 10.1″ full touch screen).
- Equipped with high-sensitivity, 12-crystal wide-beam pulse Doppler transducer (1 MHz).
- Maximum 6 waveforms displayed on the same screen (FHR, TOCO, and Fetal movement).
- Built-in high-speed line thermal printer with 112 mm thermosensitive Z-fold paper.
- Dedicated Digital Signal Processing (DSP) for accurate and stable fetal heart rate monitoring.
- Rechargeable Lithium-ion battery providing 5 to 8 hours continuous operating time.
- Massive storage: 25,000 groups medical records and 8,640 hours trend review.
- Standard RJ45 socket, HL7 data streaming, and USB data export for EMR connectivity.
Optional function :
- Twins / Triple monitoring function with twin tracing separate graph printing.
- Automatic Fetal Movement (AFM) waveform display and manual marker (MFM).
- Waterproof IPX7 FHR & TOCO probes.
- Wired / Wireless Central Monitoring Station connection, trolley cart, and wall-mount.
