Device Specifications

Parameter	Specification
Rated Voltage	AC120V or AC230V
Rated Frequency	50Hz / 60Hz
Power Consumption	1200VA ±10%
Fuse	T10AH when AC120V or T6.3AL when AC230V
Protection Class	Class 1, Type CF
Leakage Current	In accordance with IEC601, Part2-2
Carrier Frequency	400㎑, 500㎑
Repeat Frequency	33㎑
Size (W × D × H)	410mm × 388mm × 160mm
Weight	12.5Kg
Operation Temperature	10℃ to 40℃
Storage Temperature	-10℃ to 60℃
Humidity	20% to 95% RH
Operation Altitude	700mbar ~ 1060mbar
Operation Cycle	10 sec ON / 30 sec Idle
Cooling	1 inner fan

**Output Power**
Mode	Output Power	Load	Carrier Frequency	Crest Factor	Duty Rate	Repeat Frequency
Pure Cut	400W	200Ω	400kHz	1.6	100%	Continuous
Blend 1	250W	200Ω	400kHz	2.4	70%	33kHz
Blend 2	200W	200Ω	400kHz	2.3	55%	33kHz
Blend 3	150W	200Ω	400kHz	2.8	45%	33kHz
Contact Coagulation	120W	200Ω	400kHz	3.3	40%	33kHz
Spray Coagulation	100W	300Ω	400kHz	5.9	8.0%	33kHz
Argon Coagulation	100W	300Ω	400kHz	5.9	8.0%	33kHz
Bipolar Standard	100W	100Ω	500kHz	1.3	100%	Continuous
Bipolar Auto Start	100W	100Ω	500kHz	1.3	100%	Continuous
Bipolar Forced	80W	100Ω	500kHz	2.7	30%	33kHz
Bipolar Cut	120W	200Ω	500kHz	1.6	100%	Continuous
Bipolar Blend	100W	200Ω	500kHz	2.2	65%	33kHz

**Output Power (Optional)**
Mode	Output Power	Load	Carrier Frequency	Crest Factor	Duty Rate	Repeat Frequency
Soft Coagulation	80W	100Ω	400kHz	1.4	100%	Continuous
Papillotomy	150W	200Ω	400kHz	–	–	–
Polypectomy	150W	200Ω	400kHz	–	–	–

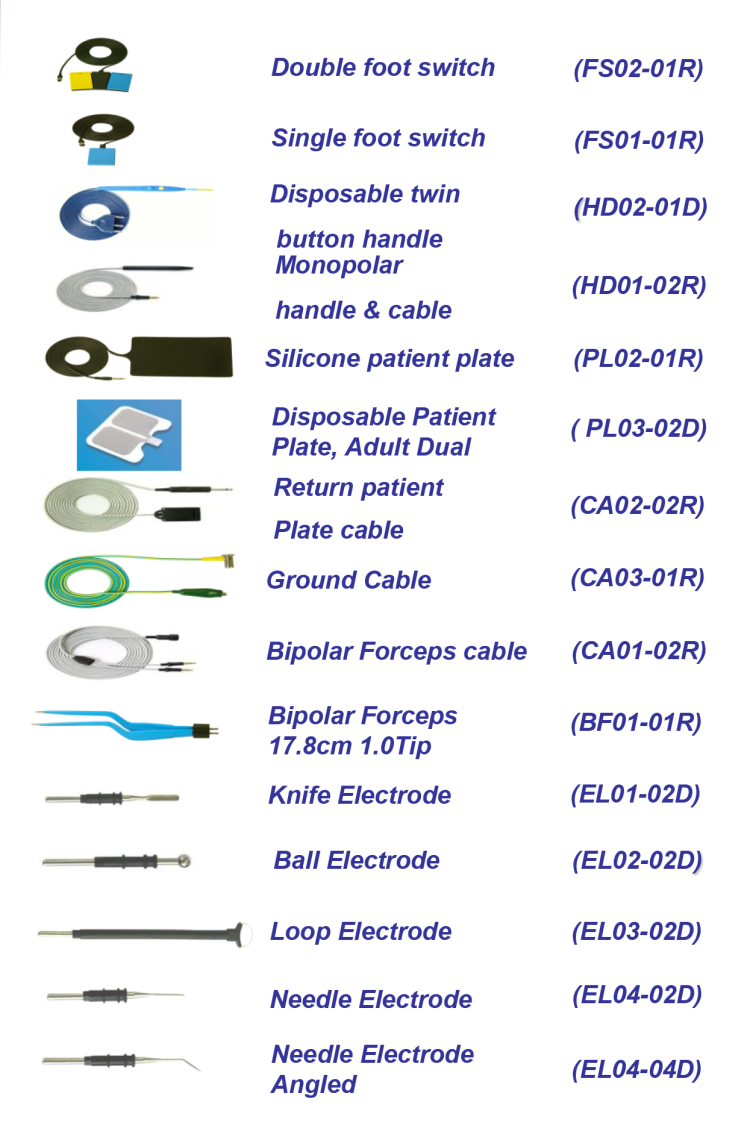

Standard Accessories

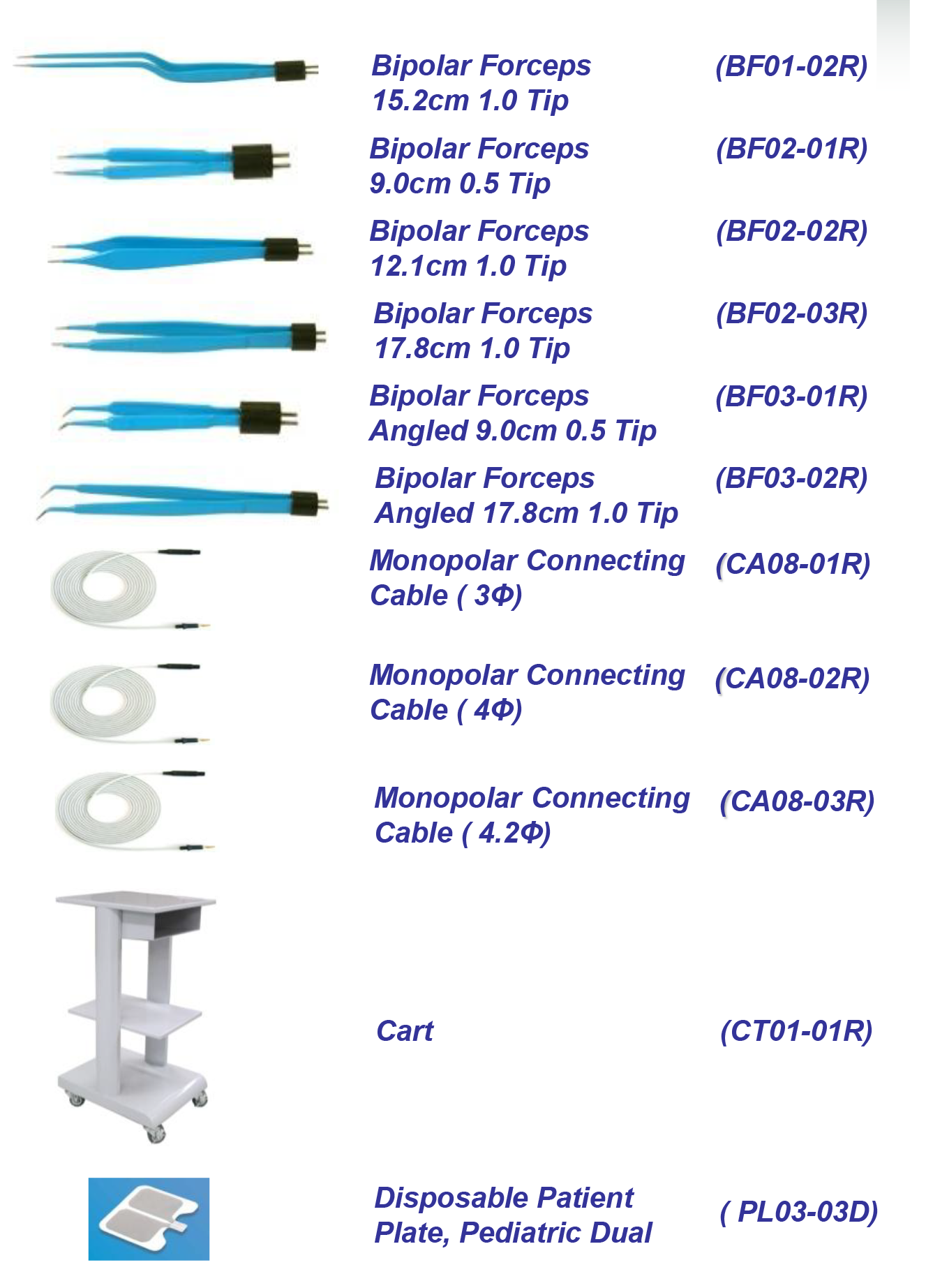

Optional Accessories

FEATURES

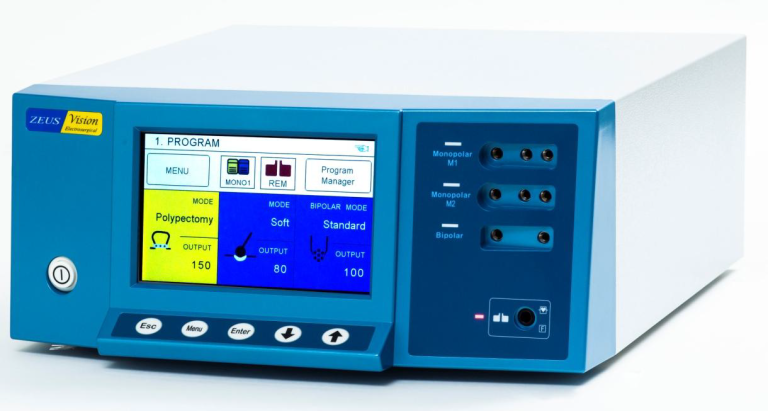

This equipment consists of 7 inch of TFT LCD and 5 functional keys which are placed in the front part
With the adoption of touch screen, it is easy to select menu, operation functions and RF output.
Menu and operation functions can be selected by Menu Button, Esc Button, Enter Button, Up Button and Down Button.
The ON/OFF function of Touch Screen is provided.
One equipment provides such functions that are required to perform an operation as Functional Cutting (Pure Cut,
Blend1, Blend2, Blend3), Coagulation (Spray Coagulation, Contact Coagulation), Bipolar Coagulation (Bipolar Standard,
Bipolar Auto Start, Bipolar Forced, Bipolar Cut, Bipolar Blend).
Two Twin Button Handles provide remote-control function. (Select Cutting or Coagulation)
Foot Switch is available for Cutting and Coagulating
It can be used by selecting the monopolar output (M1, M2).
Microprocessor can straighten, stabilize the output
Operations of Cutting, Coagulation and Bipolar Coagulation can be distinct from each other by sound and indication lamp
Each application mode (Cutting, Coagulation, Bipolar Coagulation) has a different sound, which enables you to easily
distinguish an operation type.
If the area between a patient and the pad is not appropriate, REM(Return Electrode Monitoring) gives the alarm with a
warning sound and stop an operation of the product to prevent a burning incident
The level of alarm sound can be adjusted during an operation of application mode.
The selected output ratio of Cut, Coagulation, and Bipolar Coagulation will displayed by reenergizing the device after
power OFF.
99 storages are available by using user storage function.
The input power frequency 50Hz / 60Hz is automatically detected.

SAFETY FUNCTION

① A fuse built in a power circuit prevent an over current from flowing through the equipment

② When the plate attached to the patient is separated from the equipment, the red alarm light begins flickering.
Pressing the button of Twin Button Handle or the pedal of Cutting and Coagulation of Double Foot Switch will
stop the alarm sound and the equipment
③ REM (Return Electrode Monitoring) monitors the size of contacting area between a patient and the pad. If the size is
inappropriate, it automatically blocks the high- frequency current to minimize the danger of burning incidents
④ To protect a patient, the case is fully grounded so that a leakage current can flow into the earth.
